RHF ‑ 高温箱式炉
40分钟内可迅速升至1400°C，快速加热的同时可满足实验室用炉严格的加热周期要求。
标准参数
- 最高工作温度1400℃、1500℃和1600℃
- PID301标准控制器，单段程序控制
- 炉腔体积3、8、15和35L
- Soft closing parallel action door (3 & 8 litre models only)
- 大功率硅碳棒加热，高温下使用寿命长，可承受间歇式冲击，能在高温下长时间工作
- RHF 3 & 8 litre have a cast alumina hearth; RHF 15 & 35 have silicon carbide hearth
- 低能耗轻质保温材料，确保高能效和快速升温
Options (specify these at time of order)
- 过温保护
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
Content may be subject to modifications or corrections

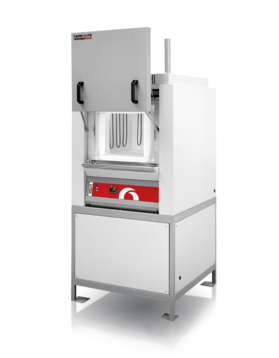

HTF ‑ 高温实验室箱式炉
HTF可编程控制温度，既可以间歇式也可以连续操作，提供可靠的加热表现
标准参数
- 1700°C & 1800°C maximum operating temperature
- 炉膛体积4 ~ 27L
- 优越的硅钼棒加热元件的性能
- Parallel action door keeps heated surface away from the user
- 垂直上开门，确保灼热的炉门远离操作者
- 炉膛采用优质耐火砖和低能耗轻质保温材料
- Programmable 3216P1 controller
- 过温保护
- RS232 数据通讯 (HTF17/5，HTF17/10，HTF18/4，HTF18/8 标配)
- 箱体内有冷却风扇，确保外壳低温
- The HTF 17/25 & HTF 18/15 both have electric door actuation
Options (specify these at time of order)
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
- RS232和RS485数据通讯 (HTF17/25，HTF18/15，HTF18/27)
Content may be subject to modifications or corrections

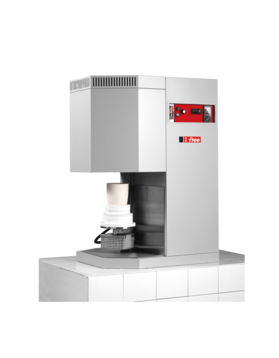

BLF ‑ 高温底载式炉
通过升降炉床来实现样品快速升温和冷却，同时保护操作人员无需直接面对高温辐射
标准参数
- 1600°C, 1700°C & 1800°C maximum operating temperature
- 炉腔体积3 ~ 21L
- Programmable 3216P1 controller
- 适用于高温陶瓷烧结，高温玻璃熔化或不同气氛下使用
- 可通过升降炉床实现快速加热和冷却循环
- Electrically operated elevator hearth protects operator from the chamber's radiant heat
- Hearth cage with safety interlock
- Excellent temperature uniformity as a result of the hexagonal chamber
- 标配过温保护，避免无人操作时超负载工作
- 1600 °C model heated by silicon carbide elements
- 1700 °C & 1800 °C models heated by molybdenum disilicide elements
Options (specify these at time of order)
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
- 配套坩埚
- Modified hearth for the introduction of gases into an inverted crucible (not gas tight)
- Radiation shutter
- Customised options including: adaptation to introduce thermocouple or stirrer through the chamber roof and rotating hearth
- Plasma sprayed alumina protection tube to protect heating elements from sample contamination
Content may be subject to modifications or corrections
