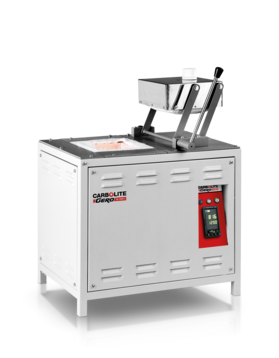

结合传统知识和技术的现代设计，提供高效可靠的热处理，便于更换加热元件，维护简单。

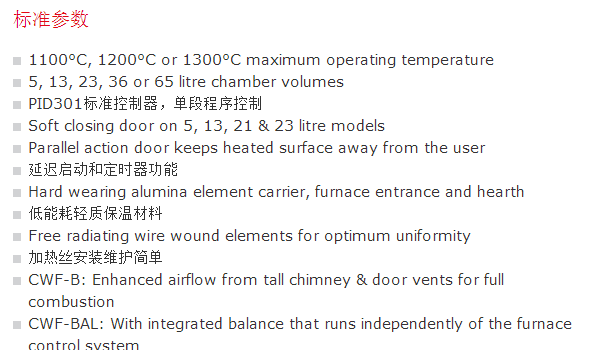

标准参数

• 1100°C, 1200°C or 1300°C maximum operating temperature
• 5, 13, 23, 36 or 65 litre chamber volumes
• PID301标准控制器，单段程序控制
• Soft closing door on 5, 13, 21 & 23 litre models
• Parallel action door keeps heated surface away from the user
• 延迟启动和定时器功能
• Hard wearing alumina element carrier, furnace entrance and hearth
• 低能耗轻质保温材料
• Free radiating wire wound elements for optimum uniformity
• 加热丝安装维护简单
• CWF-B: Enhanced airflow from tall chimney & door vents for full combustion
• CWF-BAL: With integrated balance that runs independently of the furnace control system
• CWF-BAL: Software supplied with the balance may be used to monitor the balance reading via a computer
• CWF-BAL: Maximum capacity of balance is 3 kg with a resolution of 0.01 g (other capacities available)

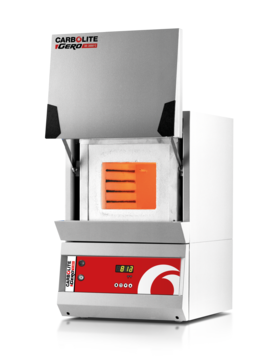

ELF 系列马弗炉适合小型普通实验，真空成型的低热质材料以及安装于两侧的半嵌入式全辐射螺旋电阻丝确保高效的热量。废气通过顶部陶瓷烟囱排出，如果废气中含有毒或腐蚀气体，建议选购灰化炉或反应罐。

标准参数

• 最高工作温度1100℃
• 炉腔体积6、14和23L
• Drop down door with air gap to minimise external temperature
• PID301标准控制器，单段程序控制
• 延迟启动和定时器功能
• 真空成型的低热质保温材料
• 硬质陶瓷炉床
• 顶部陶瓷烟囱排放废气

Options (specify these at time of order)

• 过温保护

Content may be subject to modifications or corrections

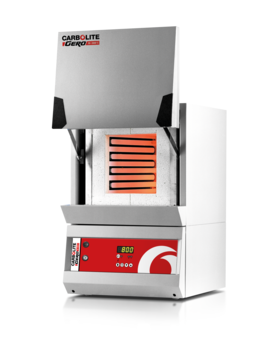

采用全辐射电阻丝和低能耗轻质耐火材料结合设计，确保良好的温度均匀性，适合中小型实验室使用。

标准参数

• 1100°c or 1200°c maximum operating temperature
• 炉腔体积5、13和23L
• 升温至1000℃只需10mins
• 全辐射电阻丝，提供高能效，确保快速升温
• 低能耗轻质保温材料，确保高能效和快速升温
• 垂直上开门，确保灼热的炉门远离操作者
• PID301标准控制器，单段程序控制
• Soft closing parallel action door keeps heated surface away from the user
• Hard wearing hearth

Options (specify these at time of order)

• 过温保护
• A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications

Content may be subject to modifications or corrections

40分钟内可迅速升至1400°C，快速加热的同时可满足实验室用炉严格的加热周期要求。

标准参数

• 最高工作温度1400℃、1500℃和1600℃
• PID301标准控制器，单段程序控制
• 炉腔体积3、8、15和35L
• Soft closing parallel action door (3 & 8 litre models only)
• 大功率硅碳棒加热，高温下使用寿命长，可承受间歇式冲击，能在高温下长时间工作
• RHF 3 & 8 litre have a cast alumina hearth; RHF 15 & 35 have silicon carbide hearth
• 低能耗轻质保温材料，确保高能效和快速升温

Options (specify these at time of order)

• 过温保护
• A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications

Content may be subject to modifications or corrections
